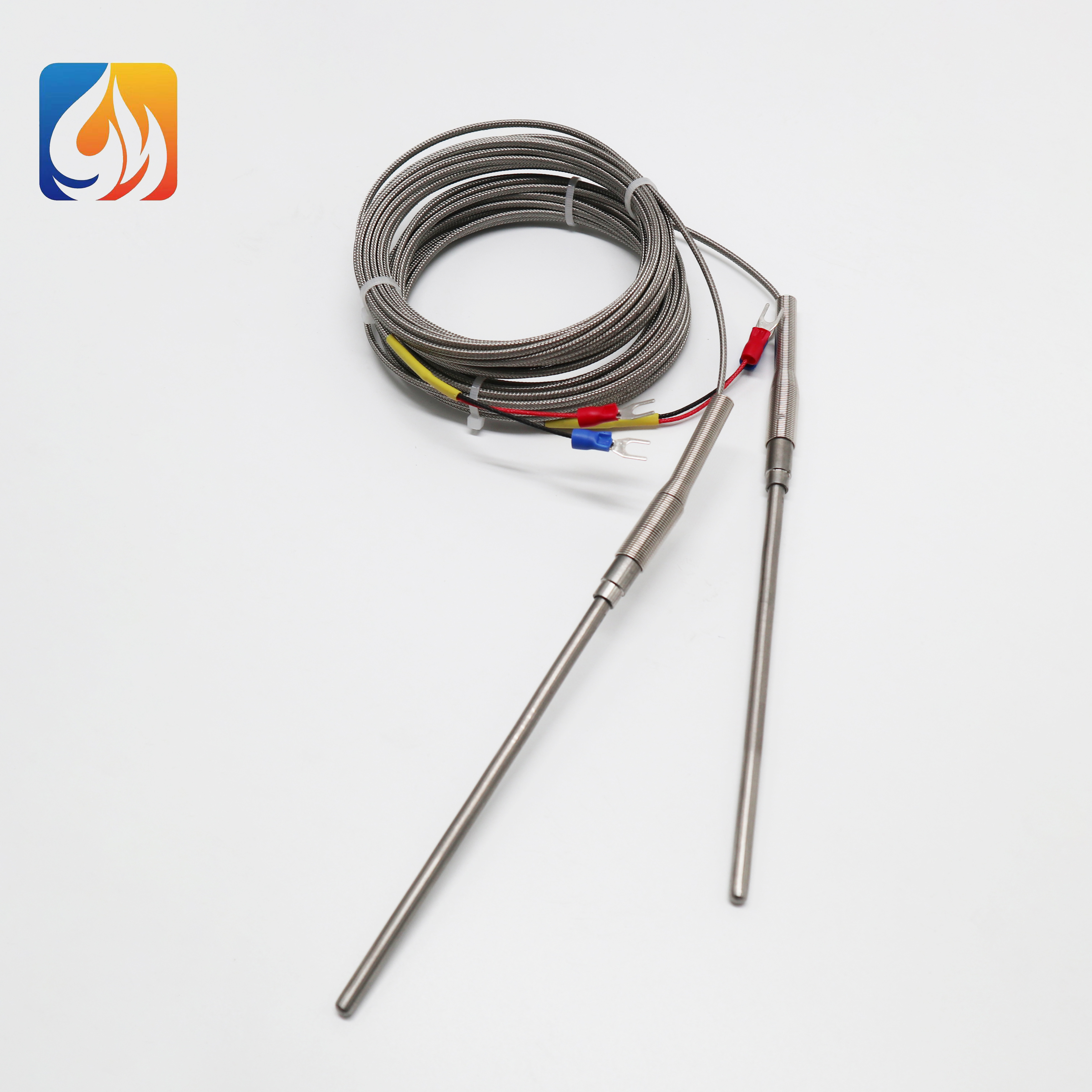

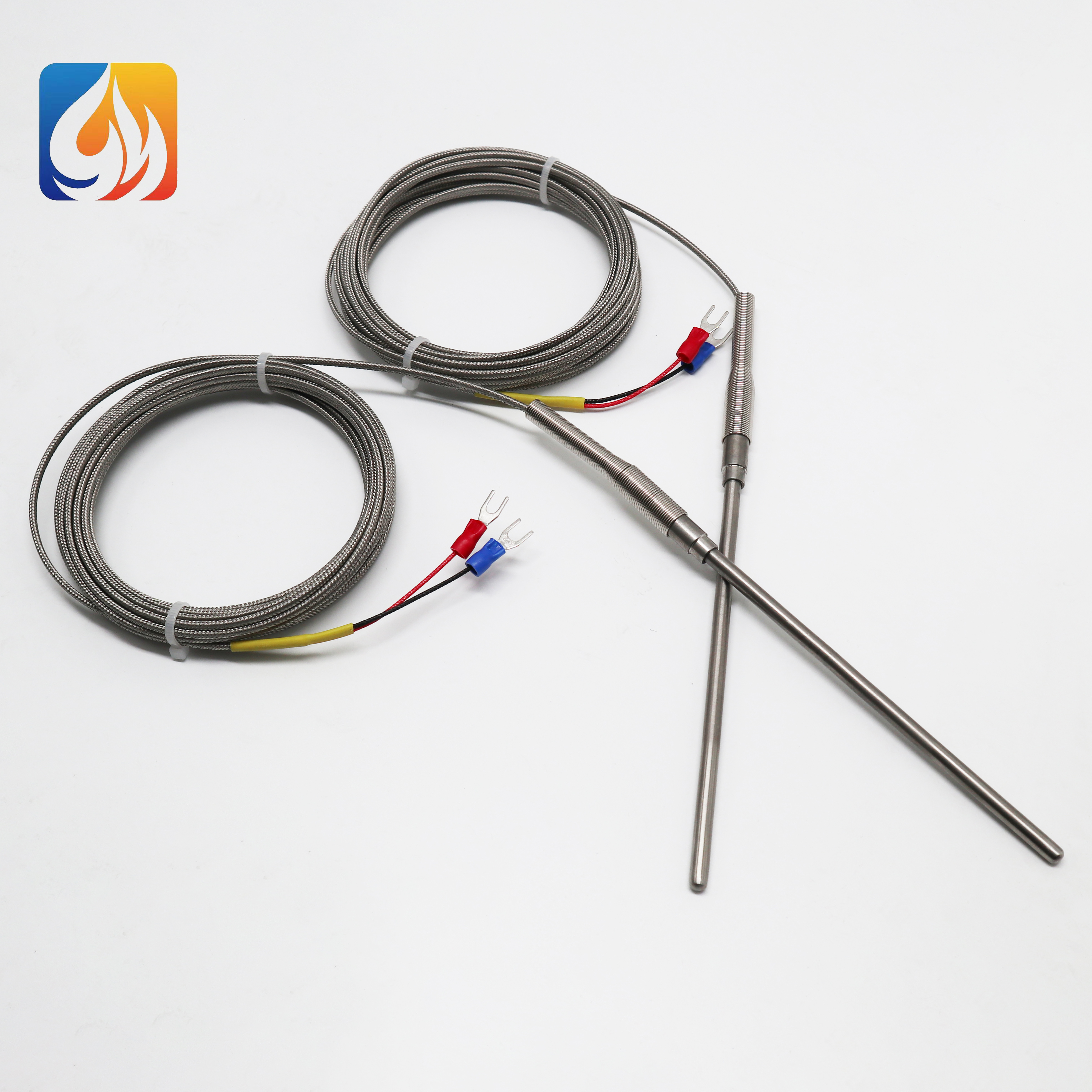

temperature sensor K type thermocouple with insulated high temperature lead wire

Short Description:

The K-type thermocouple with insulated high-temperature leads is a high-precision sensor used for measuring temperature. It uses K-type thermocouples as temperature sensitive components and can measure the temperature of various media, such as gases, liquids, and solids, through a connection method with insulated high-temperature leads.




  • :
  • E-mail: elainxu@ycxrdr.com

    Product Detail

    Product Tags

    A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.

    Item Temperature Sensor
    Type K/E/J/T/PT100
    Measuring Temperature 0-600℃
    Probe Size φ5*30mm (customized)
    Thread Size M12*1.5 (can be customized)
    Connector UT type; yellow plug; aviation plug

    Measuring Range and Accuracy:

    Type Conductor Material Code Accuracy
    ClassⅠ ClassⅡ
    Accuracy Temperature range( °C ) Accuracy Temperature range( °C )
    K NiCr-NiSi WRN 1.5°C -1040 ±2.5°C -1040
    J Fe-CuNi WRF Or -790 or -790
    E NiCr-CuNi WRE ±0.4%|t| -840 ±0.75%|t| -840
    N NiCrSi-NiSi WRM -1140 -1240
    T Cu-CuNi WRC ±0.5°C or -390 ±1°C or -390
    ±0.4%|t| 0.75%|t|
