240x60mm 600w Infrared plate ceramic flat heater for thermoforming

Short Description:

IR Heater Emitter is efficient, robust heaters which provide long wave infrared radiation. Electric infrared ceramic heater operate in the temperature of 300°C to 900°C producing infrared wavelengths in the 2 – 10 micron range. They are used in a diverse range of industrial processes such as heaters for thermoforming, and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas.

E-mail: elainxu@ycxrdr.com

Product Detail

Product Tags

Product Description

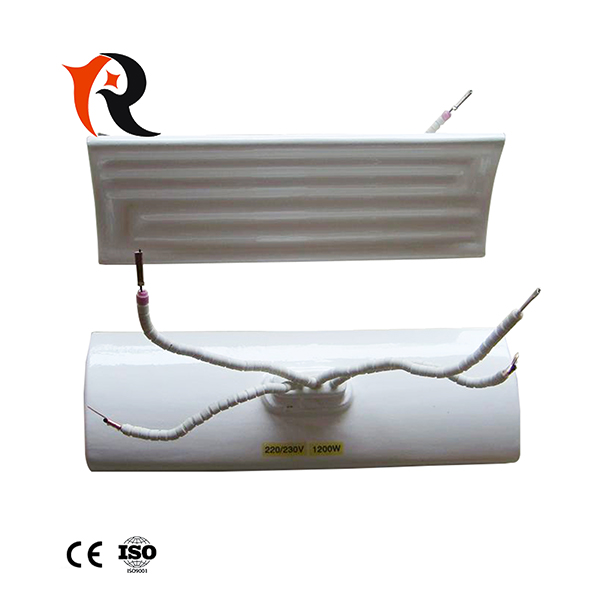

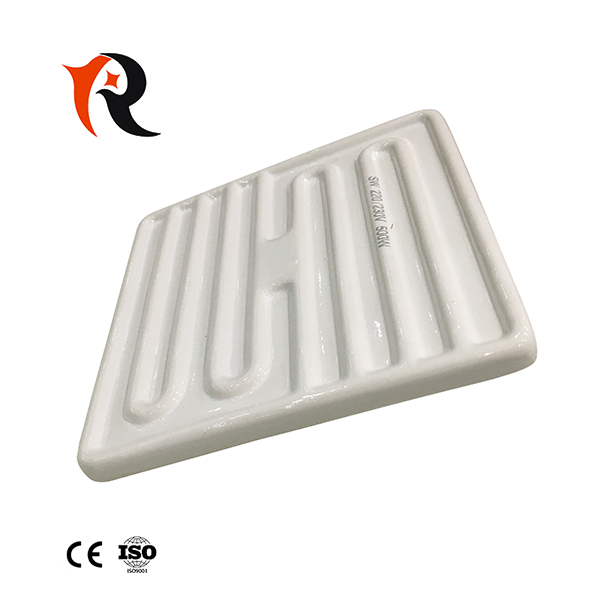

Infrared ceramic plate heater for vacuum forming machine

Ceramic infrared heat elements are efficient, robust heaters which provide long wave infrared radiation. The ceramic heaters and infrared heaters are used in a diverse range of industrial and engineering applications such as thermoforming heaters, packaging and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas. Ceramic elements produced by Ceramicx include ceramic trough elements, ceramic hollow elements, ceramic flat elements, and ceramic infrared bulbs.

Features

* Durable, splash-proof, non-corrosive finish

* Watt densities from 3 w/cm²

* Maximum temperature output is 1292 F (700 C.)

* Available color in white/ black/yellow

* Estimated life in excess of 10,000 hours

* Available With thermocouple & without thermocouple

Item	value
Product name	Infrared ceramic heater
Size	245*60mm
Color	Yellow/Black/White
Wattage	250W-1000W
Voltage	220V/230V/380V
Heating Wire Type	Nickel Chromium
Thermocouple Type	K(customized)
Lead Leagth	Customized
Insulation material	Cotton Insulation
Certification	CE/Rohs
