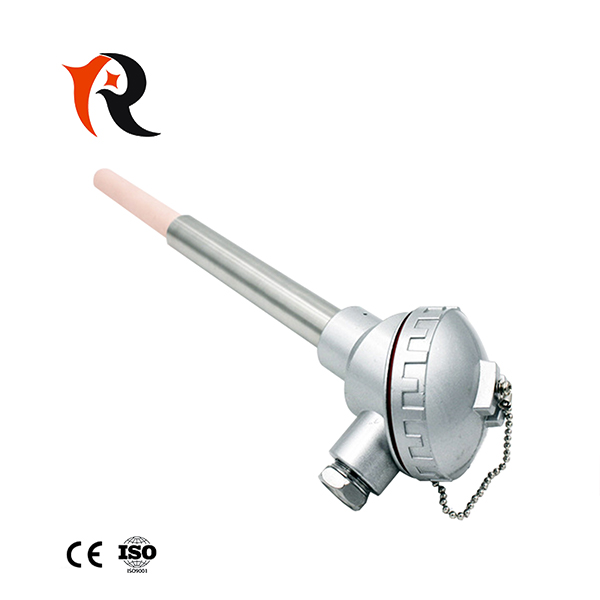

100mm Armored Thermocouple High Temperature Type K Thermocouple Temperature Sensor can be heated to 0-1200 degrees Celsius

Short Description:

As a temperature measurement sensor, this armored thermocouple is usually used in the process control system with temperature transmitters, regulators and display instruments to directly measure or control the temperature of liquid, steam and gas media and solid surfaces in various production processes.




E-mail: elainxu@ycxrdr.com

Product Detail

Product Tags

Product Detail

Armored thermocouples mainly consist of a basic structure such as junction boxes, terminal blocks and armored thermocouple components, and are equipped with various installation and fixing devices. Installation fixed type fixtures are for users to use during installation.

Armored thermocouples have many advantages such as bendability, high pressure resistance, fast thermal response time, and durability. Like industrial assembled thermocouples, they are used as sensors for measuring temperature and are usually matched with display instruments, recording instruments and electronic regulators.

X Industrial armored thermocouple

Ready to find out more?

Get us a free quote today!

Product Type

High temperature armored thermocouple



Product Name

K/J/E/N/T Thermocouple Temperature Sensor

K Type

1300℃(But Not recommended over 1200℃)

J Type

750℃

E Type

0~900℃

T Type

0~350℃

N Type

0~1300℃

Structure

General/Armoured

Out of The Line Method

Lead Wire/Thermocouple Head

Wire

Solid/Multiple twisted
Thermocouple Heads Types Aluminium/Plastic/Explosion proof

Terminal Nose

Y/U/Ring/Pin

K/J Common Lead Material

1.metal braid 2.glass fibre 3.silicone 4.teflon 5.ptc

Minimum Diameter of Armoured Thermocouple Probe:

K TYPE

0.5mm

J TYPE

1mm

E/T/N TYPE

2mm Start



Product features:

Armored thermocouple is the most widely used temperature device in temperature measurement.

Its main features are wide temperature measurement range, relatively stable performance, simple structure, good dynamic response, and the ability to transmit 4-20mA electrical signals remotely for easy automatic control. and centralized control. In addition, the thermal response time is short, reducing dynamic errors; it can be bent for installation and use; it has a large measurement range; it has high mechanical strength and good voltage resistance performance.

These are the advantages of armored thermocouples.

Industrial armored thermocouple
Armored Thermocouple Sellers

Product application

armored thermocouple applications

Our Company

Yan Yan Machinery is a manufacturer specializing in industrial heaters. For example, armored thermocoupler / mica tape heater / ceramic tape heater / mica heating plate / ceramic heating plate, etc. Enterprises to independent innovation brand, establish "small heat technology" and "micro heat" product trademarks.

At the same time, it has a certain independent research and development capability, and applies advanced technology to the design of electric heating products to create the best product value for customers.

The company is in strict accordance with the ISO9001 quality management system for manufacturing, all products are in line with CE and ROHS testing certification.

Our company has introduced advanced production equipment, precision testing instruments, the use of high-quality raw materials; Have a professional technical team, perfect after-sales service system; Design and manufacture various types of high quality heater products for injection molding machines, suction machines, wire drawing machines, blow molding machines, extruders, rubber and plastic equipment and other industries.
